BALL JOINT | JIKIU - JB26882

Specification

Thread Size:

M16x1.50

Ø (mm):

47.57

Overall Height (mm):

104

Cone Size Ø (mm):

16.3

Cone Pitch:

1:6

Mounting Height (mm):

51.5

Location

Front Axle Arm/Rod

Position

Lower Left/Right

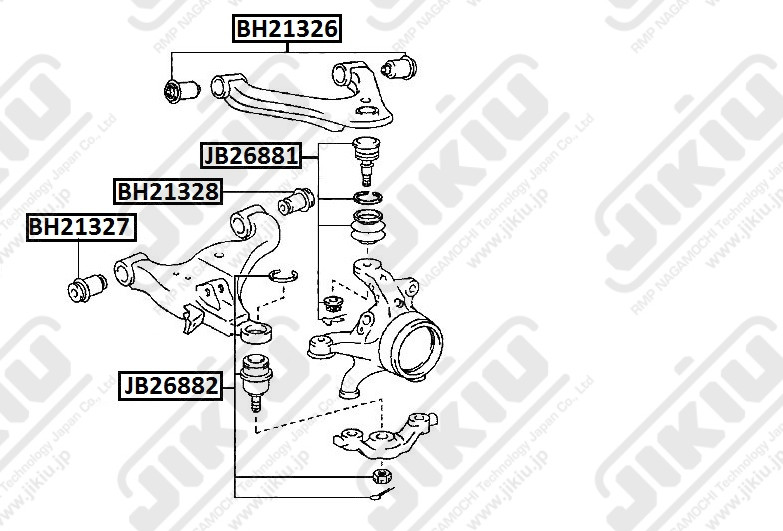

Parent Assembly

Brands

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

JIKIU

Type

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

ARM ASSY, SUSPENSION

Crosses

Owner
Number
555 SANKEI
SB-3882
CORTECO
49399018
CTR
CB0408
CTR
CBT-64
FeBest
0120-GGN15LF
Febi
43028
JAE
51220-1016G
JRAPP
A1601
LYNXauto
C1127LR
Sidem
45183
Owner
Number
SKF
VKDS811017
TOYOTA
43330-09295
TOYOTA
43330-09400
TOYOTA
43330-09490
TOYOTA
43330-09510
TOYOTA
43330-09A20
TOYOTA
48068-04030_JB
TOYOTA
48069-04030_JB
